Impulse Generator

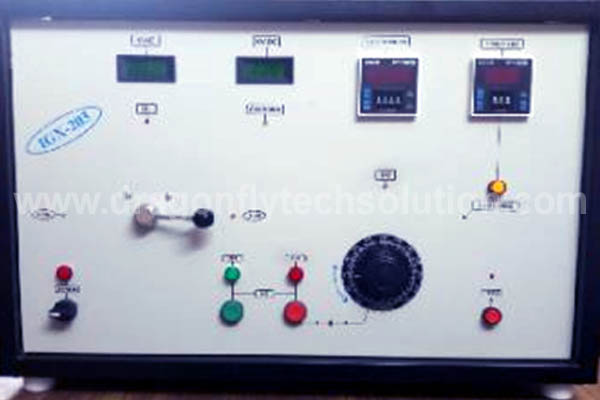

Dragonfly Tech Solutions, Bengaluru offer wide range of Impulse Generators. Impulse Voltage Generator (Model: IGX-203) is specially designed for testing MCBs, LT Panels or any other items having low load capacitance.

All the controls / measuring circuits are provided with proper HF filters / surge suppressors where ever necessary. The test voltage can be continuously varied from 3kV to 20kV. Since the range of test voltage varies from 3 kV to 20kV, a specially designed electro mechanical capacitor discharge system is envisaged. So there may be a very small contact bouncing at lower voltages.

Technical Specification

Operating Voltage: 230 V-AC ±10% 50Hz AC

Output wave form: Standard LI-1.2/50 as per IEC-60060-1

Impulse voltage: Continuously variable from 3kV to 20 kV (positive & negative pulses)

Front time: 1.2 µs

Time-to-half-value: 50 µs

Note: The value of the test voltage is to be maintained within the specified tolerance stated below:
Peak Value: ±3%
Front Time (T1): ±30%
Time-to-half-value (T2): ±20%

Maximum Stored Energy: 50 Joules

Max-Impulse/Minute: 4

Impulse Output: 3 Nos.
a) Direct output HV-1
b) HV-2 with 200Ω source resistance
c) HV-3 with 500Ω source resistance

Controls / Monitors

Power ON with indication

HT-ON/HT-OFF with indications

±Polarity Selector with indication

Manual Trigger button

DPM to read input AC voltage

DPM to read charging voltage in kV

Impulse counter

Note: (For preselecting the number of impulses required.) After elapsing the preset number of impulses, the HT will be switched off automatically.

Timer to select the interval between the impulses

UHF socket to monitor the wave form

Inbuilt 20 kV Impulse divider with UHF & BNC socket with 50 Ohms compensation
