AC Electric Field Meter

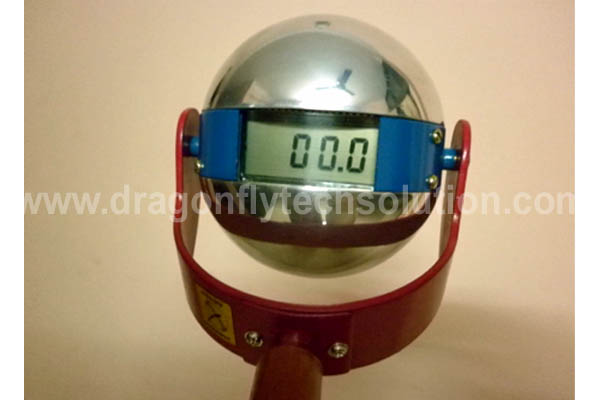

Dragonfly Tech Solutions, Bengaluru offer wide range of AC Electric Field Meters. The Spherical Electrode AC Electric Field Meter (Model: EMF-50) is designed for the measurement of electric field under the transmission lines & substations. It fully complies with the technical requirement of measurement and calibration as per relevant International Standards.

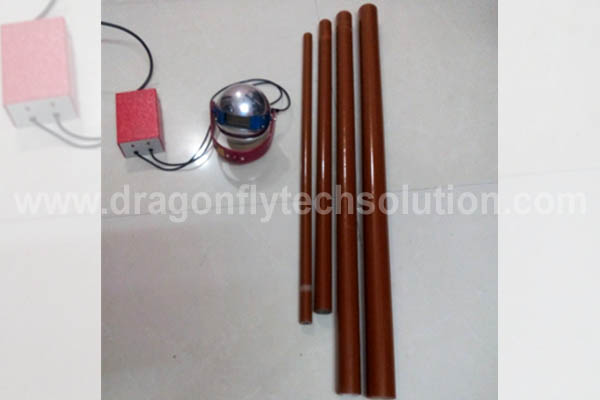

The design is of floating body type, so that no reference is requied for the measurement. Generally the measurement will be made in air at 1 meter above the ground level. A suitable light weight handle approx. 3 meters in length is provided.

Technical Specification

Operating Voltage: 9 Volt Cell (2 Nos.)

Display: 3½ digit LCD display to read directly in kV/m

Maximum Reading: 49.9 kV/m

Resolution: 0.1 kV

Battery check facility

Hadle Approx. 3 meter length

OPTION-I

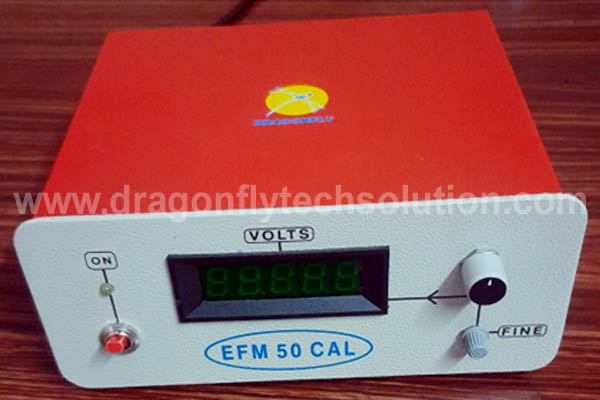

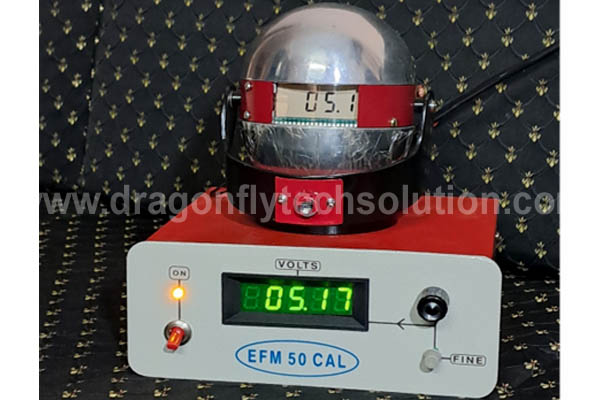

CAL-CHECK-JIG: This is used for checking the Performance / Calibration and the linearity of the meter periodically.

Download Product Brochure
